Product Gallery

EK1 80,000 to 150,000 BTU/HR

Product Data

As an ENERGY STAR® Partner, Energy Kinetics has determined that model EK1 meets the ENERGY STAR® guidelines for energy efficiency for oil heat input from 0.68 to 0.85 gph.

Fuel Natural Gas
Input 80,000 BTU/HR
100,000 BTU/HR
120,000 BTU/HR
150,000 BTU/HR
AFUE Up to 86%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Propane
Input 80,000 BTU/HR
100,000 BTU/HR
120,000 BTU/HR
150,000 BTU/HR
AFUE Up to 88%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Oil Heat
Input 0.68 GPH
0.74 GPH
0.85 GPH
1.00 GPH
AFUE Up to 88%
Product Sheet Oil Heat
Brochure View
Fuel Input AFUE Product Sheet Brochure
Natural Gas 80,000 BTU/HR Up to 86% Natural Gas/Propane View
Natural Gas 100,000 BTU/HR
Natural Gas 120,000 BTU/HR
Natural Gas 150,000 BTU/ HR
Propane 80,000 BTU/HR Up to 88%
Propane 100,000 BTU/HR
Propane 120,000 BTU/HR
Propane 150,000 BTU/HR
Oil Heat 0.68 GPH Up to 88% Oil Heat View
Oil Heat 0.74 GPH
Oil Heat 0.85 GPH
Oil Heat 1.00 GPH

productGallery-EnergyStarLogoAs an ENERGY STAR® Partner, Energy Kinetics has determined that model EK1 meets the ENERGY STAR® guidelines for energy efficiency for oil heat input from 0.68 to 0.85 gph.

productGallery-system2000-video

System 2000 Video

productGallery-boiler-incentive-program

Boiler Incentive Program
Get Information Sheet

EK1 Energy Converter Total Weight: 270 lbs.
EK1 Total System Weight 450 lbs.
EK1 Dimensions: 24.5″L x 17.5″W x 26.5″H
EK1 Storage Tank: 115 lbs. 40 gal standard, up to 120 gal available
EK1 Domestic Water: 195 gal/per hour (77ºF rise in temperature)
EK1 Domestic hot water rating 170 Gal/Hr – 228 Gal/Hr based on first hour draw with 77° rise and 40 gallon tank



Rear service models also available. View specification here.
Back to Top

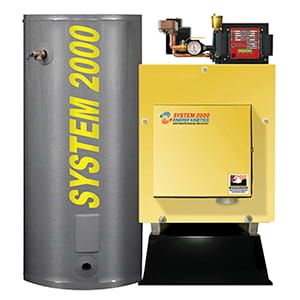

EK1 Frontier - Front Service
EK1 Frontier
Front Service

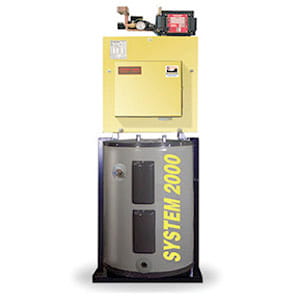

EK1 Frontier - Stackable
EK1 Frontier
Stackable

Specifications: EK1 90+ Resolute

Fuel Oil Heat
Input 0.68 GPH
0.74 GPH*
0.85 GPH
1.00 GPH
AFUE Up to 91%*
Product Sheet Oil Heat
Brochure View
Fuel Natural Gas
Input 80,000 BTU/HR
100,000 BTU/HR
AFUE Up to 90%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Propane
Input 80,000
100,000
AFUE Up to 90%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Input AFUE Product Sheet Brochure
Oil Heat 0.68 GPH Up to 91%* Oil Heat View
Oil Heat 0.74 GPH*
Oil Heat 0.85 GPH
Oil Heat 1.00 GPH
Natural Gas 80,000
100,000
Up to 90% Natural Gas/Propane View
Propane 80,000
100,000
*Factory firing rate.

productGallery-energy-star-most-efficient90+ Resolute oilheat .74 GPH is awarded the ENERGY STAR®
Most Efficient mark in 2016.

productGallery-system2000-video

System 2000 Video

productGallery-boiler-incentive-program

Boiler Incentive Program
Get Information Sheet

Resolute Energy Converter Total Weight: 270 lbs.
Resolute Total System Weight 450 lbs.
Resolute and stand w/o inducer Dimensions: 21.5″ Depth x 25″ W x 49″ H
Resolute and stand w/ inducer Dimensions: 21.5″ Depth x 25″ W x 63.75″ H
EK1 Storage Tank: 115 lbs. 40 gal standard, up to 120 gal available
Resolute Domestic Water Oil Heat: 186 gal/per hour (77°F rise in temperature and 40 gallon tank)
Resolute Domestic Water Gas Heat: 170 gal/per hour – 228 gal/per hour based on first hour draw with 77°F rise and 40 gallon tank

Back to Top

90+ Resolute
EK1 90+ Resolute

EK2 168,000 to 250,000 BTU/HR

Product Data

Specifications: EK2 FRONTIER Front Service

Fuel Natural Gas
Input 175,000 BTU/HR
200,000 BTU/HR
225,000 BTU/HR
250,000 BTU/HR
AFUE Up to 85%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Propane
Input 175,000 BTU/HR
200,000 BTU/HR
225,000 BTU/HR
250,000 BTU/HR
AFUE Up to 87%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Oil Heat
Input 1.20 GPH
1.40 GPH
1.60 GPH
1.75 GPH
AFUE Up to 88%
Product Sheet Oil Heat
Brochure View
Fuel Input AFUE Product Sheet Brochure
Natural Gas 175,000 BTU/HR Up to 85% Natural Gas/Propane View
Natural Gas 200,000 BTU/HR
Natural Gas 225,000 BTU/HR
Natural Gas 250,000 BTU/HR
Propane 175,000 BTU/HR Up to 87%
Propane 200,000 BTU/HR
Propane 225,000 BTU/HR
Propane 250,000 BTU/HR
Oil Heat 1.20 GPH Up to 88% Oil Heat View
Oil Heat 1.40 GPH
Oil Heat 1.60 GPH
Oil Heat 1.75 GPH

productGallery-system2000-video

System 2000 Video

productGallery-boiler-incentive-program

Boiler Incentive Program
Get Information Sheet

EK2 Energy Converter Total Weight: 350 lbs.
EK2 Total System Weight 550 lbs.
EK2 Dimensions: 24.5″L x 24.75″W x 27.5″H
EK2 Storage Tank: 115 lbs. 40 gal standard, up to 120 gal available
EK2 Domestic hot water rating 293 Gal/Hr – 395 Gal/Hr based on first hour draw with 77° rise and 40 gallon tank



Rear service models also available. View specification here.
Back to Top

EK2 Frontier - Front Service
EK2 Frontier
Front Service
EK2 Frontier - Stackable
EK2 Frontier
Stackable

EK3 Up to 357,000 BTU/HR Gross Output

Product Data

Specifications: EK3 Natural Gas, Propane & Oil Heat

Fuel Natural Gas
Input 300,000 BTU/HR
350,000 BTU/HR
399,000 BTU/HR
AFUE Up to 85%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Propane
Input 300,000 BTU/HR
350,000 BTU/HR
399,000 BTU/HR
AFUE Up to 86%
Product Sheet Natural Gas/Propane
Brochure View
Fuel Oil Heat
Input 2.25 GPH
2.60 GPH
3.00 GPH
AFUE Up to 87%
Product Sheet Oil Heat
Brochure View
Fuel Input Efficiency Product Sheet Brochure
Natural Gas 300,000 BTU/HR Up to 85% Natural Gas/Propane View
Natural Gas 350,000 BTU/HR
Natural Gas 399,000 BTU/HR
Propane 300,000 BTU/HR Up to 86%
Propane 350,000 BTU/HR
Propane 399,000 BTU/HR
Oil Heat 2.25 GPH Up to 87% Oil Heat View
Oil Heat 2.60 GPH
Oil Heat 3.00 GPH

EK3 Total System Weight 650 lbs.
EK3 Dimensions: 50″L x 33″W x 39.75″H
Length front to back includes piping and burner box.
The EK3 is designed to fit thru a 34″ doorway

Back to Top

EK3 Frontier - Front Service
EK3 Frontier
Front Service

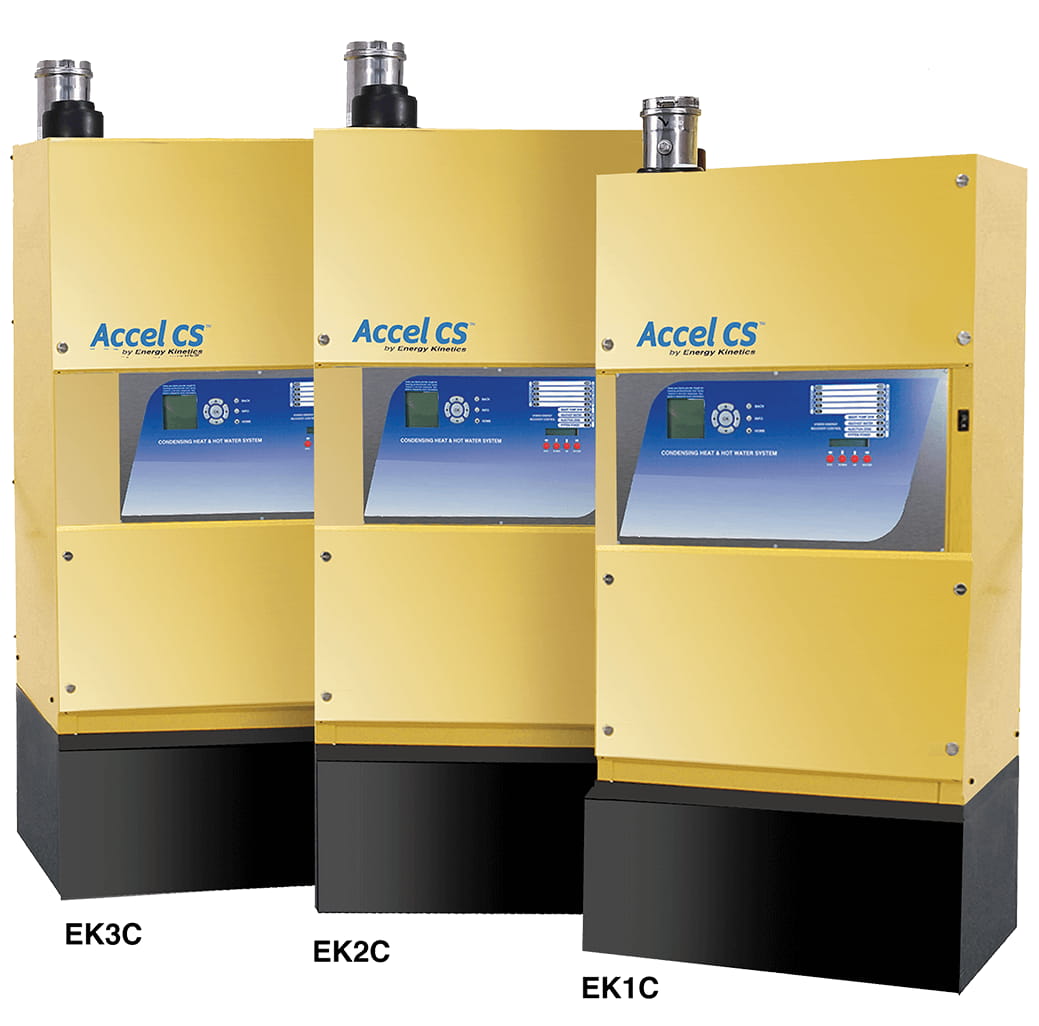

Accel CS™ EK1C, EK2C, EK3C

Product Data

Specifications: Specifications: Accel CS™ EK1C

Fuel Natural Gas
Input 90,000 – 120,000 BTU/HR
AFUE Up to 96%
Video
Brochure View
Fuel Propane
Input 90,000 – 120,000 BTU/HR
AFUE Up to 96%
Video
Brochure View
Fuel Input AFUE Video Brochure
Natural Gas 90,000 – 120,000 BTU/HR 96%

View
Propane 90,000 – 120,000 BTU/HR

Specifications: Specifications: Accel CS™ EK2C

Fuel Natural Gas
Input 150,000 – 200,000 BTU/HR
AFUE Up to 95%
Video
Brochure View
Fuel Propane
Input 150,000 – 200,000 BTU/HR
AFUE Up to 95%
Video
Brochure View
Fuel Input AFUE Video Brochure
Natural Gas 150,000 – 200,000 BTU/HR 95% View
Propane 150,000 – 200,000 BTU/HR

Specifications: Specifications: Accel CS™ EK3C

Fuel Natural Gas
Input 60,000 – 399,000 BTU/HR
Video
Brochure View
Fuel Propane
Input 60,000 – 399,000 BTU/HR
Video
Brochure View
Fuel Input Video Brochure
Natural Gas 60,000 – 399,000 BTU/HR View
Propane 60,000 – 399,000 BTU/HR
productGallery-EnergyStarLogoAs an ENERGY STAR® Partner, Energy Kinetics has determined that this product meets ENERGY STAR® guidelines for energy efficiency.
productGallery-energy-star-most-efficientAwarded the ENERGY STAR® Most Efficient mark in 2016.

productGallery-AccelCs-video

Accel CS Video

productGallery-boiler-incentive-program

Boiler Incentive Program
Get Information Sheet

Accel CS Energy Converter Total Weight: 70 lbs.
System Weight 197 lbs. (dry)
With stand: 14″ Depth x 25 7/8″ W x 64 15/16″ H
Wall mounted: 14″ Depth x 25 7/8″ W x 50 7/16″ H
Storage Tank: 115 lbs. 40 gal standard, up to 120 gal available
Domestic Hot Water: up to 228 gal/per hour (77°F rise in temperature with 40 gallon tank)

Back to Top

EK3 Frontier - Accel

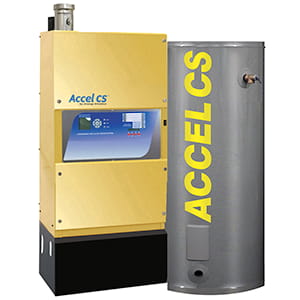

Accel CS™

Commercial Multiple Boiler Systems

Product Data

Specifications: Commercial Multiple Boiler Systems

Specifications apply to control by Digital Energy Manager. Boiler arrays are designed with EK2 or EK3 oil or gas boilers, and are available with multiple boiler controls which stage fire in response to the heat load and optional distribution system Energy Recovery Controls (ERC). Each boiler is pre-piped and pre-wired; commercial CSD-1 controls include a manual reset low water cutoff, manual reset high limit, and National Board Listing. For product data and firing rates, refer to the EK2 and EK3 data sheets, and the multiple boiler tables below.

Commercial Multiple Boiler Systems
Commercial Multiple Boiler Systems
EK2 Boilers Gross Output
2-3 Boilers 400 MBTU/HR to 600 MBTU/HR
4-5 Boilers 800 MBTU/HR to 1000 MBTU/HR
6-7 Boilers 1200 MBTU/HR to 1400 MBTU/HR
8-9 Boilers 1600 MBTU/HR to 1800 MBTU/HR
10-12 Boilers 2000 MBTU/HR to 2400 MBTU/HR
EK3 Boilers Gross Output
2-3 Boilers 700 MBTU/HR to 1070 MBTU/HR
4-5 Boilers 1400 MBTU/HR to 1785 MBTU/HR
6-7 Boilers 2100 MBTU/HR to 2500 MBTU/HR
8-9 Boilers 2800 MBTU/HR to 3200 MBTU/HR
10-12 Boilers 3500 MBTU/HR to 4285 MBTU/HR

Multiple unit installations for commercial applications are available with schematics upon request.
Back to Top


Tanks Glass Lined

Product Data

productGallery-Tanks
Glass Lined Tanks
All System 2000 tanks are heavily insulated. Glass lined have a special dip tube to maximize the quality of hot water and most effectively use System 2000 energy recovery.

Standard System 2000 Glass Lined Indirect Tanks with Plate Heat Exchanger

Tank Size 40 Gallon Standard
Diameter 20″
Height 48.5″
All Piping 3/4″
Model 100263144
Tank Size 40 Gallon Low Boy
Diameter 22″
Height 32″
All Piping 3/4″
Model 100263834
Tank Size 80 Gallon
Diameter 24″
Height 59.5″
All Piping 3/4″
Model 100263835
Tank Size 120 Gallon
Diameter 28″
Height 62.5″
All Piping 3/4″
Model 100263836
Tank Size Diameter Height All Piping Model
40 Gallon Standard 20″ 48½” 3/4″ 100263144
40 Gallon Low Boy 22″ 32″ 100263834
80 Gallon 24″ 59½” 100263835
120 Gallon 28″ 62½” 100263836

Back to Top
